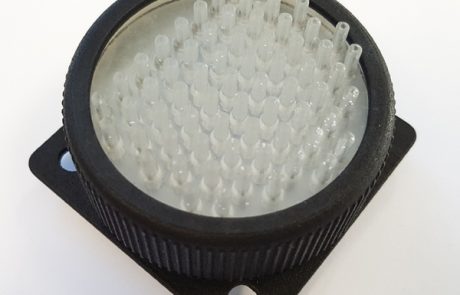

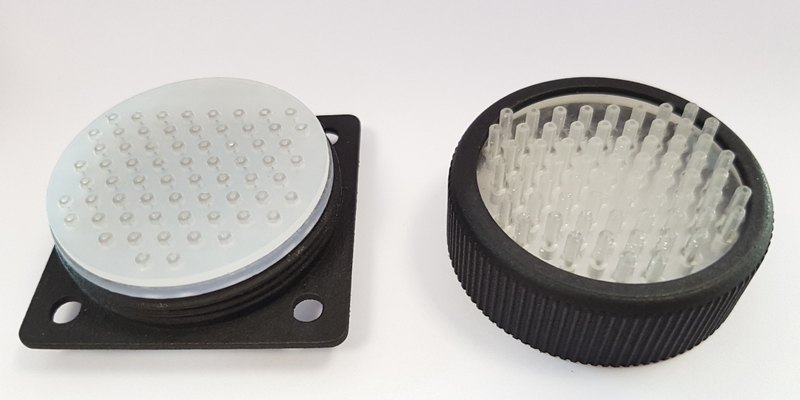

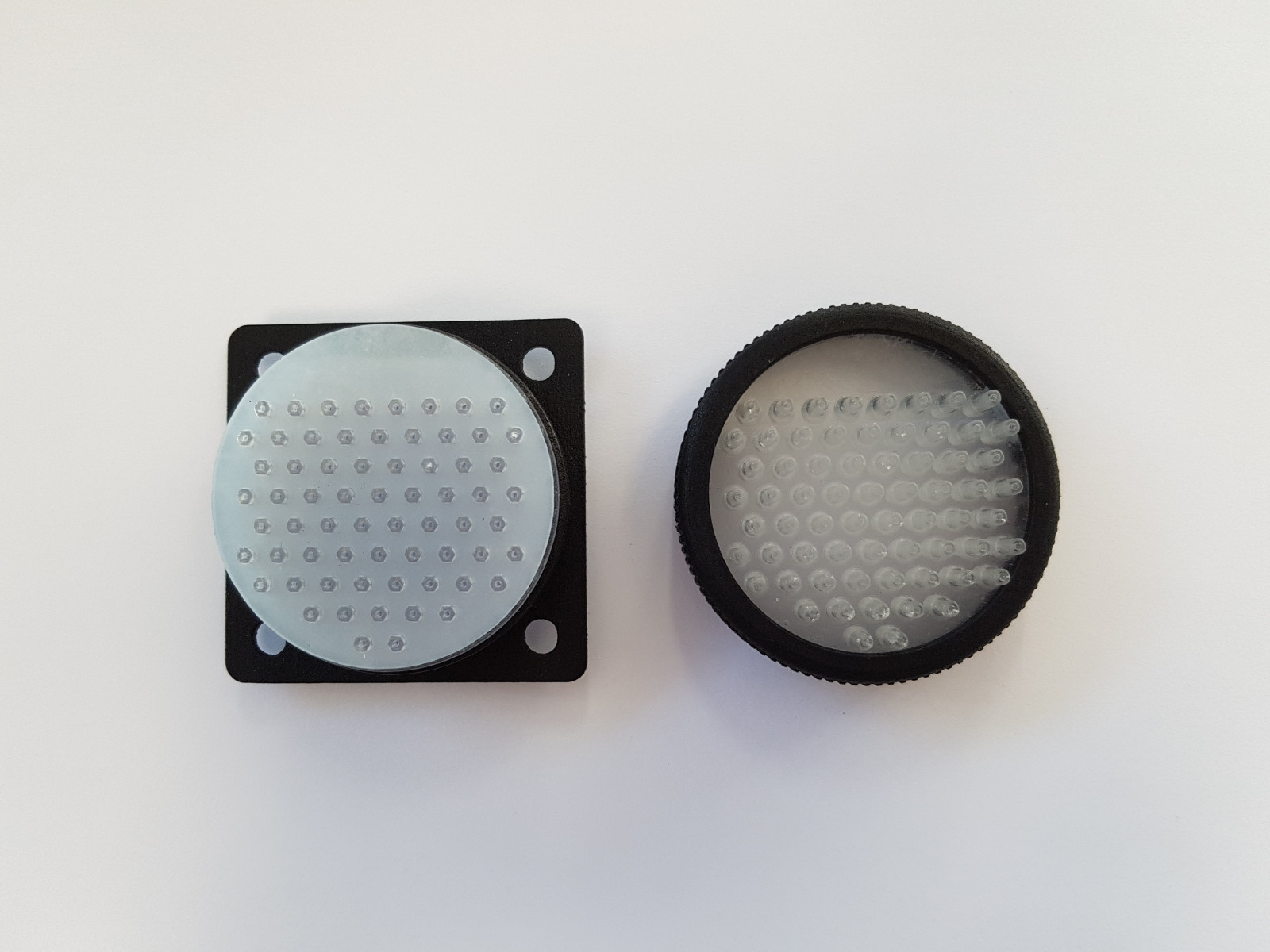

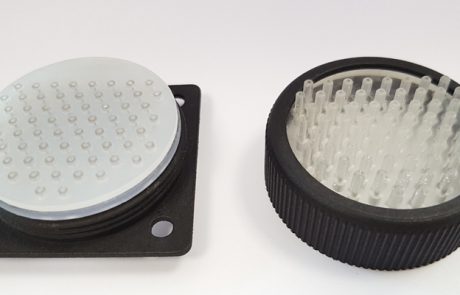

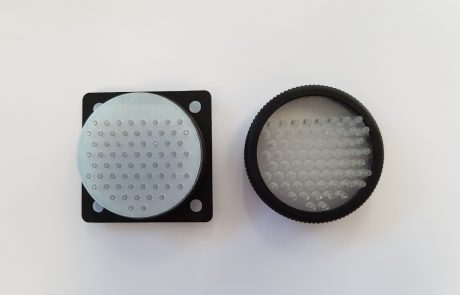

66-way quick-change pressure connector

A low-cost alternative for low-pressure applications


This simple pressure connection system allows you to disconnect and reconnect up to 66 independent pressure lines simultaneously, quickly and easily, allowing pressure scanners to be used with multiple different sets of pressure sources.

Manufactured from toughened and solvent-resistant polymers using advanced AM techniques, this pressure connector system offers an economical and convenient alternative to other available bulkhead pressure connectors. The connector terminates on both sides with a barb suitable for use with a 1 mm ID silicone hose, and – measuring just 50 mm in diameter – is suitable for use in applications where space is minimal.


Applications


Quick-change pressure connection

Multi-hole and omni-probes

Quickly connect and disconnect valuable probes from the pressure measurement system, protecting valuable probes from accidental damage.

Wind-tunnel laboratory

Wind-tunnel models

Avoid the hassle, tangle and possible mix-up from large numbers of free-end pressure tubes exiting instrumented and pressure-tapped wind tunnel models. Bulkhead pressure connectors can be installed directly on the model itself, eliminating the need for hose labels, hose stowage and protective sleeves.

Pressure scanner transducer ports

Pressure scanners

Maximize the flexibility of your pressure scanner systems by fitting them with quick-change connectors, allowing rapid change-over between models and minimizing expensive facility down-time.


Features


66 independent channels

Designed for use with 64-channel scanner systems, allowing two additional reference channels

Tough polymer construction

Manufactured from advanced polymer materials, the connector can support operation with a wide range of temperatures and fluids.

Economical alternative

A cost-effective alternative to high-pressure, precision-machined connectors


Product Details


Capabilities and performance

  • Channel count: 66
  • Temperature range: min. 0°C – 60°C
  • Pressure range: Up to 100 kPa
  • Panel cutout: 50 mm dia. with 42 mm x 42 mm M5
  • Interface: for best performance, use 1 mm ID x 1 mm wall silicone hose, both sides
  • Hole pitch: 4.5 mm, close-packed
